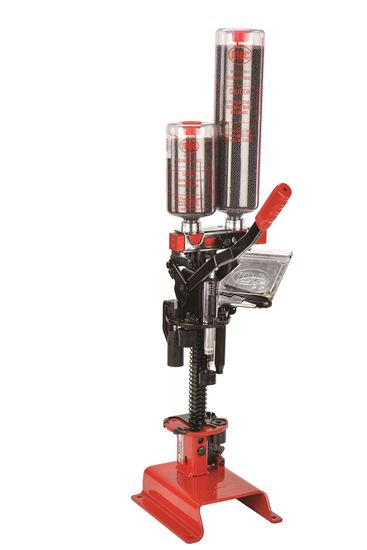

Sizemaster Parts

SizemasterSizemaster 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 19 20 21 22 23 25 26 27 28 29 30 31 32 33 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 10 24 34 51 52 53 54 55 56 57 58 59 60 61 62 63 63 64 65 66 67 68 70 69 70 70 71 72 73 74 75 76 77 78 79 80 80 81 82 83 84 85

warningWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

IMAGE CHART# NAME SKU MSRP Order
View Image 1 Cap Plug 10013X $0.55
View Image 2 Small Container With Cap 100301L13XUPC $14.79
View Image 3 Shot Container (12") 1008042UPC $20.24
View Image 4 Bottle Cap 100304C $0.55
View Image 5 Brass Washer (1 Per Pack) 100304W $1.08
View Image 6 Grommet (1 Per Pack) 100304G $1.08
View Image 8 Charge Bar - 1/2 Oz. Lead Shot 10030212 $30.70
View Image 8A Charge Bar - 5/8 Oz. Lead Shot 10030258 $30.70
View Image 8B Charge Bar - 11/16 Oz. Lead Shot 1003021116 $30.70
View Image 8C Charge Bar - 3/4 Oz. Lead Shot 10030234 $30.70
View Image 8D Charge Bar - 7/8 Oz. Lead Shot 10030278 $30.70
View Image 8E Charge Bar - 1 Oz. Lead Shot 100302100 $30.70
View Image 8F Charge Bar - 1 1/8 Oz. Lead Shot 100302118 $30.70
View Image 8G Charge Bar - 1 3/16 Oz. Lead Shot 1003021316 $30.70
View Image 8H Charge Bar - 1 1/4 Oz. Lead Shot 100302114 $30.70
View Image 8I Charge Bar - 1 3/8 Oz. Lead Shot 100302138 $30.70
View Image 8J Charge Bar - 1 1/2 Oz. Lead Shot 100302112 $30.70
View Image 8K Charge Bar - 1 5/8 Oz. Lead Shot 100302158 $30.70
View Image 8L Charge Bar - 1 3/4 Oz. Lead Shot 100302134 $30.70
View Image 8M Charge Bar - 1 7/8 Oz. Lead Shot 100302178 $30.70
View Image 8N Charge Bar - 2 Oz. Lead Shot 100302200 $30.70
View Image 8O Charge Bar - 2 1/4 Oz. Lead Shot 100302214 $30.70
View Image 9 Charge Bar Rubber Insert 1008440 $2.85
View Image 10 Collet - 10 Gauge 100808010 $73.52
View Image 10A Collet - 12 Gauge 100808012 $73.52
View Image 10B Collet - 16 Gauge 100808016 $73.52
View Image 10C Collet - 20 Gauge 100808020 $73.52
View Image 10D Collet - 28 Gauge 100808028 $73.52
View Image 10F Collet - 410 Bore 1008080410 $73.52
View Image 11 Lock Washer HDW751W $0.80
View Image 12 Handle Bolt HDW610C $1.31
View Image 13 Washer HDW623C $1.44
View Image 14 Bolt HDW685F $1.44
View Image 15 Handle Bolt HDW609B $2.91
View Image 16 Crimp Die Cam 100723 $6.04
View Image 17 Handle Grip 100709C $4.66
View Image 18 Handle Assembly 100709CA $34.50
View Image 19 Stop Nut (14 / 20) HDW309E $0.52
View Image 20 Link Spacer 100510B $0.52
View Image 21 Links Kit (L & R Hand) 100610 $18.89
View Image 22 Self Tapping Screw HDW8324 $3.42
View Image 23 Link Bolt HDW610A $1.44
View Image 24 Wing Nut HDW713D $1.44
View Image 25 Links Kit (L & R Hand) 100610 $18.89
View Image 26 Pro Check 100751E $13.21
View Image 27 Measure Only 1008098CA $31.65
View Image 28 Measure Pivot Screw HDW304D $0.48
View Image 29A Drop Tube (20, 28, 410) 10020528 $1.90
View Image 30 Pressure Indicator Face 100306F $6.26
View Image 31 Pressure Spring 100306T $6.26
View Image 32 Pointer 100306P $4.66
View Image 33 Adjusting Clamp 100507 $4.66
View Image 34 Adjusting Clamp Screw HDW507A $1.44
View Image 35 Rammer Tube (10 Gauge) 100705B10 $17.24
View Image 35A Rammer Tube - 12 Gauge 100505B12 $17.24
View Image 35B Rammer Tube - 16 Gauge 100505B16 $17.24
View Image 35C Rammer Tube - 20 Gauge 100505B20 $17.24
View Image 35D Rammer Tube - 28 Gauge 100505B28 $17.24
View Image 35E Rammer Tube - 410 Bore 100505BF410 $21.99
View Image 36 Lock Nut HDW459A $0.78
View Image 37 Lock Nut HDW8099 $1.99
View Image 38 Measure Mounting Bracket 100704C $12.64
View Image 39 Nut HDW304J $0.52
View Image 40 Primer Tray Assembly 100285A3 $54.88
View Image 41 Primer Tray Cover 100285ML $6.87
View Image 42 Rivet 100314A $0.72
View Image 43 Primer Feed Spring 100285P $2.02
View Image 44 Pick-Up Arm 100285G $13.02
View Image 45 Chain 100285R $3.86
View Image 46 Retaining Ring 100285H $0.72
View Image 47 Pivot Bracket Assembly 100285A4 $31.60
View Image 48 Wing Nut HDW304F $1.31
View Image 49 Spring 100285Q $2.58
View Image 50 Lock Nut HDW461A $0.50
View Image 51 Primer Catcher 1008067 $5.75
View Image 52 Cam Roller Zytel Die 1008312 $1.38
View Image 52A Cam Roller (28 Gauge) 1008699 $1.33
View Image 53 Cam Roller Pin 100613D $0.27
View Image 54 Cam Crimp Assembly - 10 Gauge 100721CA10 $18.17
View Image 54A Cam Crimp Assembly - 12 Gauge 100721CA12 $18.17
View Image 54B Cam Crimp Assembly - 16 Gauge 100721CA16 $18.17
View Image 54C Cam Crimp Assembly - 20 Gauge 100721CA20 $18.17
View Image 54D Cam Crimp Assembly - 28 Gauge 100721CA28 $18.17
View Image 54E Cam Crimp Assembly - 410 Bore 100721CA410 $18.17
View Image 55 Cam Crimp Punch - 10 Gauge 100721B10 $10.67
View Image 55A Cam Crimp Punch - 12 Gauge 100721B12 $10.67
View Image 55B Cam Crimp Punch - 16 Gauge 100721B16 $10.67
View Image 55C Cam Crimp Punch - 20 Gauge 100721B20 $10.67
View Image 55D Cam Crimp Punch - 28 Gauge 100721B28 $10.67
View Image 55E Cam Crimp Punch - 410 Bore 100721B410 $10.67
View Image 56 Deprime Spacer (3") 1008126 $2.75
View Image 57 Deprime Punch - 10 Gauge 100810710 $22.08
View Image 57A Deprime Punch - 12 Gauge 100810712 $22.08
View Image 57B Deprime Punch - 16 Gauge 100810716 $22.08
View Image 57C Deprime Punch - 20 Gauge 100810720 $22.08
View Image 57D Deprime Punch - 28 Gauge 100810728 $22.08
View Image 57E Deprime Punch - 410 Bore 1008107410 $22.08
View Image 58 Wad Guide Fingers - 10 Gauge 100830010 $4.06
View Image 58A Wad Guide Fingers - 12 Gauge 100830012 $4.06
View Image 58B Wad Guide Fingers - 16 Gauge 100830016 $4.06
View Image 58C Wad Guide Fingers - 20 Gauge 100830020 $4.06
View Image 58D Wad Guide Fingers - 28 Gauge 100830028 $4.06
View Image 58E Wad Guide Fingers - 410 Bore 1008300410 $4.06
View Image 59 Reprime Punch - 10 Gauge 10028610 $19.79
View Image 59A Reprime Punch - 12 Gauge 10028612 $19.79
View Image 59B Reprime Punch - 16 Gauge 10028616 $19.79
View Image 59C Reprime Punch - 20 Gauge 10028620 $19.79
View Image 59D Reprime Punch - 28 Gauge 10028628 $19.79
View Image 59E Reprime Punch - 410 Bore 100720410 $18.89
View Image 60 Base Assembly (Red) 1008095 $109.99
View Image 61 Shell Holder - 10 Gauge 10071510 $16.09
View Image 61A Shell Holder - 12 Gauge 10071512 $16.09
View Image 61B Shell Holder - 16 Gauge 10071516 $16.09
View Image 61C Shell Holder - 20 Gauge 10071520 $16.09
View Image 61D Shell Holder - 28 Gauge 10071528 $16.09
View Image 61E Shell Holder - 410 Bore 100715410 $16.09
View Image 62 Wad Guide Spring 100751D $1.41
View Image 63 Nut HDW8476 $1.68
View Image 64 Ball Pivot Pin 1008419 $2.72
View Image 65 Spindex Star Crimp - 10 Gauge ( 6 Point) 100843910 $6.57
View Image 65A Spindex Star Crimp - 12 Gauge ( 6 Point) 1008439126 $6.57
View Image 65B Spindex Star Crimp - 12 Gauge ( 8 Point) 1008439128 $6.57
View Image 65C Spindex Star Crimp - 16 Gauge ( 6 Point) 1008439166 $6.57
View Image 65D Spindex Star Crimp - 16 Gauge ( 8 Point) 1008439168 $6.57
View Image 65E Spindex Star Crimp - 20 Gauge ( 6 Point) 1008439206 $6.57
View Image 65F Spindex Star Crimp - 20 Gauge ( 8 Point) 1008439208 $6.57
View Image 65G Spindex Star Crimp - 28 Gauge ( 6 Point) 100843928 $6.57
View Image 65H Spindex Star Crimp - 410 Bore ( 6 Point) 1008439410 $6.57
View Image 66 Shell Lifter - 10 Gauge 100810910 $13.71
View Image 66A Shell Lifter - 12, 16, 20 Gauge 100810912 $13.71
View Image 66B Shell Lifter - 28 Gauge 100810928 $13.71
View Image 66C Shell Lifter - 410 Bore 1008109410 $13.71
View Image 67 Actuator Rod 1008310 $13.28
View Image 68 Roll Pin HDW7455 $0.21
View Image 69 Column 1008093 $53.20
View Image 70 Cam Roller Kit 1008735 $6.81
View Image 71 Column Spring 100612 $5.53
View Image 72 Primer Seating Pad 100331 $3.60
View Image 73 Primer Seating Spring 100330 $1.90
View Image 74 Primer Cup 100326 $13.71
View Image 74A Complete Primer Seat Assembly (Spring, Pad, Cup) 100325CP $19.30
View Image 75 Spacer (3") 1008111 $2.43
View Image 76 Column Bolt HDW8024 $1.41
View Image 77 Wad Guide Bracket 1008313 $11.46
View Image 78 Nut 1008017 $3.86
View Image 79 Mounting Bolt HDW313C $0.52
View Image 80 Retaining Ring 1008023 $0.78
View Image 81 Pivot Pin 1008022 $2.19
View Image 82 Return Bracket 1008608 $32.84
View Image 83 Chain Link With Keeper 1008032 $6.78
View Image 84 Collet Closure 1008106 $41.81
View Image 85 Turret Assembly 1008097 $63.19
