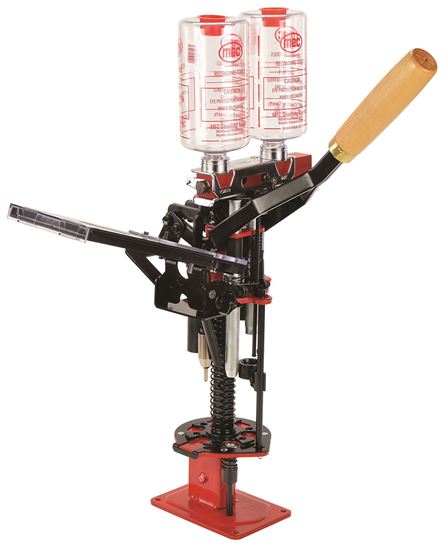

MEC 650N Parts

MEC 650 1 2 3 4 5 5 6 7 8 9 9 10 11 12 13 13 13 14 14 15 16 17 18 19 20 21 22 23 23 24 25 26 26 27 27 28 29 30 31 32 32 33 34 35 36 37 38 39 40 41 41 42 43 44 45 46 47 48 49 50 51 52 53 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 102 103 104 104 105 106

warningWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

IMAGE CHART# NAME SKU MSRP Order
View Image 1 Cap Plug 10013X $0.55
View Image 2A Drop Tube (Powder Side - 28, 410) 10060528 $10.07
View Image 2B Drop Tube (Shot Side - 20, 28, 410) 100820528 $10.09
View Image 2C Drop Tube (Shot & Pwd Side - 12, 16), (Pwd Side - 20) 1008205 $10.09
View Image 3 Small Container With Cap 100301L13XUPC $14.79
View Image 4 Spring 100630 $4.66
View Image 5 Screw HDW303 $1.41
View Image 6 Wad Guide Clip Assembly 1008377 $6.78
View Image 7 Bottle Cap 100304C $0.55
View Image 8 Grommet (1 Per Pack) 100304G $1.08
View Image 8A Brass Washer (1 Per Pack) 100304W $1.08
View Image 9 Nut HDW304J $0.52
View Image 10 Pressure Indicator Face 100306F $6.26
View Image 11 Pointer 100306P $4.66
View Image 12 Pressure Spring 100306T $6.26
View Image 13 Stop Nut (14 / 20) HDW309E $0.52
View Image 14 Column Bolt HDW8024 $1.41
View Image 15 Mounting Bolt HDW313C $0.52
View Image 16 Eject Bolt 100660 $6.87
View Image 17 Charge Bar - 1/2 Oz. Lead Shot 10050212 $30.70
View Image 17A Charge Bar - 5/8 Oz. Lead Shot 10050258 $30.70
View Image 17B Charge Bar - 11/16 Oz. Lead Shot 1005021116 $30.70
View Image 17C Charge Bar - 3/4 Oz. Lead Shot 10050234 $30.70
View Image 17D Charge Bar - 7/8 Oz. Lead Shot 10050278 $30.70
View Image 17E Charge Bar - 1 Oz. Lead Shot 100502100 $30.70
View Image 17F ChargeBar - 1 1/8 Oz. Lead Shot 100502118 $30.70
View Image 17G Charge Bar - 1 3/16 Oz. Lead Shot 1005021316 $30.70
View Image 17H Charge Bar - 1 1/4 Oz. Lead Shot 100502114 $30.70
View Image 17I Charge Bar - 1 3/8 Oz. Lead Shot 100502138 $30.70
View Image 17J Charge Bar - 1 1/2 Oz. Lead Shot 100502112 $30.70
View Image 17K Charge Bar - 1 5/8 Oz. Lead Shot 100502158 $30.70
View Image 17L Charge Bar - 1 3/4 Oz. Lead Shot 100502134 $30.70
View Image 17M Charge Bar - 1 7/8 Oz. Lead Shot 100502178 $30.70
View Image 18 Primer Catcher 100351 $5.75
View Image 19 Resize Ring - 10 Gauge 10043510 $8.35
View Image 19A Resize Ring - 12 Gauge 10043512 $8.35
View Image 19B Resize Ring - 16 Gauge 10043516 $8.35
View Image 19C Resize Ring - 20 Gauge 10043520 $8.35
View Image 19D Resize Ring - 28 Gauge 10043528 $8.35
View Image 19E Resize Ring - 410 Bore 100435410 $8.35
View Image 20 Block Measure Attachment 100504C $6.26
View Image 21 Wad Guide Fingers - 410 Bore 100453P410 $3.91
View Image 21 Wad Guide Fingers - 12 Gauge 100830012 $4.06
View Image 21A Wad Guide Fingers - 16 Gauge 100830016 $4.06
View Image 21B Wad Guide Fingers - 20 Gauge 100830020 $4.06
View Image 21C Was Guide Fingers - 28 Gauge 100830028 $4.06
View Image 22 Lock Nut HDW459A $0.78
View Image 23 Lock Nut HDW460A $0.52
View Image 24 Spring Anchor 100572 $1.41
View Image 25 Rammer Tube - 12 Gauge 100505B12 $17.24
View Image 25A Rammer Tube - 16 Gauge 100505B16 $17.24
View Image 25B Rammer Tube - 20 Gauge 100505B20 $17.24
View Image 25C Rammer Tube - 28 Gauge 100505B28 $17.24
View Image 25D Rammer Tube - 410 Bore 100505BF410 $21.99
View Image 26 Adjusting Clamp 100507 $4.66
View Image 27 Adjusting Clamp Screw HDW507A $1.44
View Image 28 Hex Wrench 100507B $0.78
View Image 29 Link Spacer 100510B $0.52
View Image 30 Deprime Punch - 12 Gauge 10051912 $15.83
View Image 30A Deprime Punch - 16 Gauge 10051916 $15.83
View Image 30B Deprime Punch - 20 Gauge 10051920 $15.83
View Image 30C Deprime Punch - 28 Gauge 10051928 $15.83
View Image 30D Deprime Punch - 410 Bore 100519410 $15.83
View Image 31 Measure Assembly 1008075 $50.59
View Image 32 Links Kit (L & R Hand) 100610 $18.89
View Image 33 Link Bolt HDW610A $1.44
View Image 34 Handle Bolt HDW610C $1.31
View Image 35 Column Spring 100612 $5.53
View Image 36 Cam Roller Pin 100613D $0.27
View Image 37 Cam Roller Zytel Die 1008312 $1.38
View Image 38 Washer HDW623C $1.44
View Image 39 Spindex Star Crimp - 12 Gauge ( 8 Point) 1008439128 $6.57
View Image 39A Spindex Star Crimp - 12 Gauge ( 6 Point) 1008439126 $6.57
View Image 39B Spindex Star Crimp - 12 Gauge ( Smooth) 100843912S $6.57
View Image 39C Spindex Star Crimp - 16 Gauge ( 8 Point) 1008439168 $6.57
View Image 39D Spindex Star Crimp - 16 Gauge ( 6 Point) 1008439166 $6.57
View Image 39E Spindex Star Crimp - 20 Gauge ( 8 Point) 1008439208 $6.57
View Image 39F Spindex Star Crimp - 20 Gauge ( 6 Point) 1008439206 $6.57
View Image 39G Spindex Star Crimp - 28 Gauge ( 6 Point) 100843928 $6.57
View Image 39H Spindex Star Crimp - 410 Bore ( 6 Point) 1008439410 $6.57
View Image 40 Ball Pivot Pin 1008419 $2.72
View Image 41 Nut HDW8476 $1.68
View Image 42 Reprime Tube - 12 Gauge 100505C12 $19.24
View Image 42A Reprime Tube - 20 Gauge 100505C20 $19.24
View Image 42B Reprime Tube - 28 Gauge 100505C28 $19.24
View Image 42C Reprime Tube - 410 Bore 100505C410 $19.24
View Image 43 Support Tube 1008316 $13.70
View Image 44 Index Ball 100515D $1.38
View Image 45 Guide Rod 100516 $19.24
View Image 47 Retaining Ring 100616A $0.78
View Image 48 Finish Die - 12 Gauge 10052212P $18.17
View Image 48A Finish Die - 16 Gauge 10052216P $18.17
View Image 48B Finish Die - 20 Gauge 10052220P $18.17
View Image 48C Finish Die - 28 Gauge 10052228P $18.17
View Image 48D Finish Die - 410 Bore 100522410P $18.17
View Image 49A Top Primer Seat 1008928 $5.25
View Image 49B Post Primer Seat 1008929 $5.46
View Image 50 12 Gauge 10053112 $7.28
View Image 51 Knockout Bushing - 12 Gauge 100832112 $10.98
View Image 51A Knockout Bushing - 16 Gauge 100832116 $10.98
View Image 51B Knockout Bushing - 20 Gauge 100832120 $10.98
View Image 51C Knockout Bushing - 28 Gauge 100832128 $10.98
View Image 51D Knockout Bushing - 410 Bore 1008321410 $10.98
View Image 52 Operating Rod 1008055CA $12.41
View Image 53 Bar Actuator 1008054 $10.70
View Image 54 Screw HDW570A $3.15
View Image 55 Bar Return Spring 100573 $1.90
View Image 56 Primer Tray Cover 100285ML $6.87
View Image 57 Column 100611 $34.64
View Image 58 Base Assembly - 12 Gauge 100861312 $48.01
View Image 58A Base Assembly - 16 Gauge 100861316 $36.40
View Image 58B Base Assembly - 20 Gauge 100861320 $36.40
View Image 58C Base Assembly - 28 Gauge 100861328 $48.01
View Image 58D Base Assembly - 410 Bore 1008613410 $36.40
View Image 59 Carrier - 12 Gauge 10061512 $20.72
View Image 59A Carrier - 16 Gauge 10061516 $20.72
View Image 59B Carrier - 20 Gauge 10061520 $20.72
View Image 59C Carrier - 28 Gauge 10061528 $20.72
View Image 59D Carrier - 410 Bore 100615410 $20.72
View Image 60 Carrier Bushing 1008112 $7.39
View Image 61 Carrier Hold Down 100615B $9.41
View Image 62 Index Spring 100615C $3.10
View Image 63 Cam Crimp Die Assembly - 12 Gauge 100621CA12 $18.17
View Image 63A Cam Crimp Die Assembly - 16 Gauge 100721CA16 $18.17
View Image 63B Cam Crimp Die Assembly - 20 Gauge 100621CA20 $18.17
View Image 63C Cam Crimp Assembly - 28 Gauge 100721CA28 $18.17
View Image 63D Cam Crimp Assembly - 410 Bore 100721CA410 $18.17
View Image 64 Cam Crimp Punch - 12 Gauge 100621B12 $9.41
View Image 64A Cam Crimp Punch - 16 Gauge 100721B16 $10.67
View Image 64B Cam Crimp Punch - 20 Gauge 100621B20 $9.41
View Image 64C Cam Crimp Punch - 28 Gauge 100721B28 $10.67
View Image 64D Cam Crimp Punch - 410 Bore 100721B410 $10.67
View Image 65 Crimp Die Cam 100723 $6.04
View Image 66 Knock Out Bracket 100656 $18.89
View Image 67 Drop Tube Bracket 100670C $8.20
View Image 68 Bar Lock 100670A $5.46
View Image 69 Washer 100670G $0.78
View Image 70 Lock Spring 100670B $2.19
View Image 71 Trip Rod 100670F $5.46
View Image 72 Trip Rod Bracket 100670E $2.19
View Image 73 Trip Spring 100670D $1.05
View Image 74 Bolt HDW685F $1.44
View Image 75 Retaining Ring 100670J $0.78
View Image 76 Lock Washer HDW685H $0.10
View Image 77 Tube Clamp Kit 100385CE $18.28
View Image 78 Retaining Clip 100385E $1.39
View Image 79 Tray Assembly 100385A3 $65.34
View Image 80 Resize Adaptor - 12 Gauge 10056812 $10.98
View Image 80A Resize Adaptor - 16 Gauge 10056816 $10.98
View Image 80B Resize Adaptor - 20 Gauge 10056820 $10.98
View Image 80C Resize Adaptor - 28 Gauge 10056828 $10.98
View Image 80D Resize Adaptor - 410 Bore 100568410 $10.98
View Image 81 Handle Grip 1008400 $22.41
View Image 82 Handle Assembly 100609CA $38.54
View Image 83 Handle Bolt HDW609B $2.91
View Image 84 Wing Nut HDW713D $1.44
View Image 85 Turret Assembly 1008035 $75.82
View Image 86 Pivot Block Screw HDW504D $1.44
View Image 87 Screw (12, 16, 20 Gauge) HDW304L $0.52
View Image 88 Hold Down Pin HDW589B $1.29
View Image 89 Primer Feed Spring 100285P $2.02
View Image 90 Rivet 100314A $0.72
View Image 91 Pick-Up Arm 100285G $13.02
View Image 92 Retaining Ring 100285H $0.72
View Image 93 Spring And Chain 1008276 $7.81
View Image 94 Clip 100385H $7.81
View Image 95 Return Spring 100385Q $2.02
View Image 96 Charge Bar Rubber Insert 1008440 $2.85
View Image 97 Hold Down Pin 1008348 $0.30
View Image 98 Retaining Ring 100670K $0.78
View Image 99 Self Tapping Screw HDW8324 $3.42
View Image 100 Reprime Spring 1008025 $7.81
View Image 101 Spacer 1008344 $2.69
View Image 102 Washer HDW609F $0.77
View Image 103 Cam Roller 100623B $3.10
View Image 104 Lock Nut HDW461A $0.50
View Image 105 Primer Seat Assembly (Post,Spring,Pad) 100525CA12 $22.08
