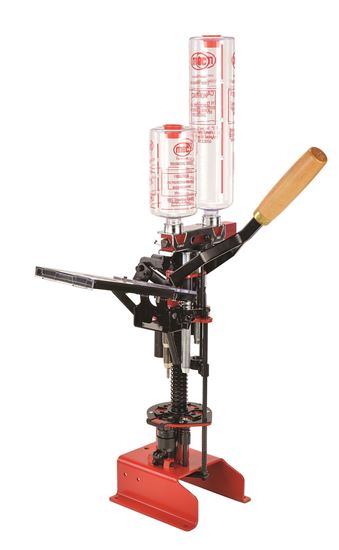

8567N Grabber Parts

8567 Grabber 1 1 2 3 4 5 6 7 8 9 10 11 12 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 42 43 44 45 46 47 47 48 49 50 50 51 52 53 54 55 56 57 58 58 58A 59 60 61 62 64 65 66 67 63 68 69 78 80 116 120 121 121 8567 Grabber 47 70 71 72 73 74 75 75 76 77 79 82 83 84 85 86 87 88 88 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 117 118 119

IMAGE CHART# NAME SKU MSRP Order
View Image 1 Cap Plug 10013X $0.49
View Image 2 Small Container With Cap 100301L13XUPC $12.41
View Image 3 Shot Container (12") 1008042UPC $16.88
View Image 4 Grommet (1 Per Pack) 100304G $0.97
View Image 4A Brass Washer (1 Per Pack) 100304W $0.97
View Image 5 Bottle Cap 100304C $0.49
View Image 6 Nut HDW304J $0.44
View Image 7 Measure Pivot Screw HDW304D $0.41
View Image 8 Measure Assembly 1008075 $45.03
View Image 9 Bar Lock 100670A $4.86
View Image 10 Washer 100670G $0.69
View Image 11 Lock Spring 100670B $1.95
View Image 12A Drop Tube (Shot Side - 20, 28, 410) 100820528 $8.98
View Image 13 Screw HDW303 $1.20
View Image 15 Charge Bar - 1/2 Oz. Lead Shot 10050212 $27.33
View Image 15A Charge Bar - 5/8 Oz. Lead Shot 10050258 $27.33
View Image 15B Charge Bar - 11/16 Oz. Lead Shot 1005021116 $27.33
View Image 15C Charge Bar - 3/4 Oz. Lead Shot 10050234 $27.33
View Image 15D Charge Bar - 7/8 Oz. Lead Shot 10050278 $27.33
View Image 15E Charge Bar - 1 Oz. Lead Shot 100502100 $27.33
View Image 15F Charge Bar - 1 1/8 Oz. Lead Shot 100502118 $27.33
View Image 15G Charge Bar - 1 3/16 Oz. Lead Shot 1005021316 $27.33
View Image 15H Charge Bar - 1 1/4 Oz. Lead Shot 100502114 $27.33
View Image 15I Charge Bar - 1 3/8 Oz. Lead Shot 100502138 $27.33
View Image 15J Charge Bar - 1 1/2 Oz. Lead Shot 100502112 $27.33
View Image 15K Charge Bar - 1 5/8 Oz. Lead Shot 100502158 $27.33
View Image 15L Charge Bar - 1 3/4 Oz. Lead Shot 100502134 $27.33
View Image 15M Charge Bar - 1 7/8 Oz. Lead Shot 100502178 $27.33
View Image 16 Bar Return Spring 100573 $1.69
View Image 17 Spring Anchor 100572 $1.26
View Image 18 Column Bolt HDW8024 $1.20
View Image 19 Rivet 100314A $0.64
View Image 20 Primer Feed Spring 100285P $1.80
View Image 21 Primer Tray Cover 100285ML $6.12
View Image 22 Pick-Up Arm 100285G $11.59
View Image 23 Retaining Ring 100285H $0.64
View Image 24 Tray Assembly 100385A3 $58.18
View Image 25 Return Spring 100385Q $1.80
View Image 26 Screw HDW303 $1.20
View Image 27 Retaining Clip 100385E $1.24
View Image 28 Clamp Assembly 1008209 $14.64
View Image 29 Washer HDW609F $0.65
View Image 30 Bolt HDW685F $1.22
View Image 31 Spring And Chain 1008276 $6.95
View Image 32 Mounting Bracket 1008045 $17.46
View Image 33 Block Measure Attachment 100504C $5.58
View Image 34 Lock Nut HDW460A $0.44
View Image 35 Drop Tube Bracket 100670C $7.30
View Image 36 Screw (12, 16, 20 Gauge) HDW304L $0.44
View Image 37 Bar Actuator 1008054 $9.52
View Image 38 Cam Roller Zytel Die 1008312 $1.23
View Image 39 Cam Roller Pin 100613D $0.24
View Image 40 Screw HDW570A $2.67
View Image 41 Operating Rod 1008055CA $11.05
View Image 42 Retaining Ring 100670J $0.69
View Image 43 Nut HDW304J $0.44

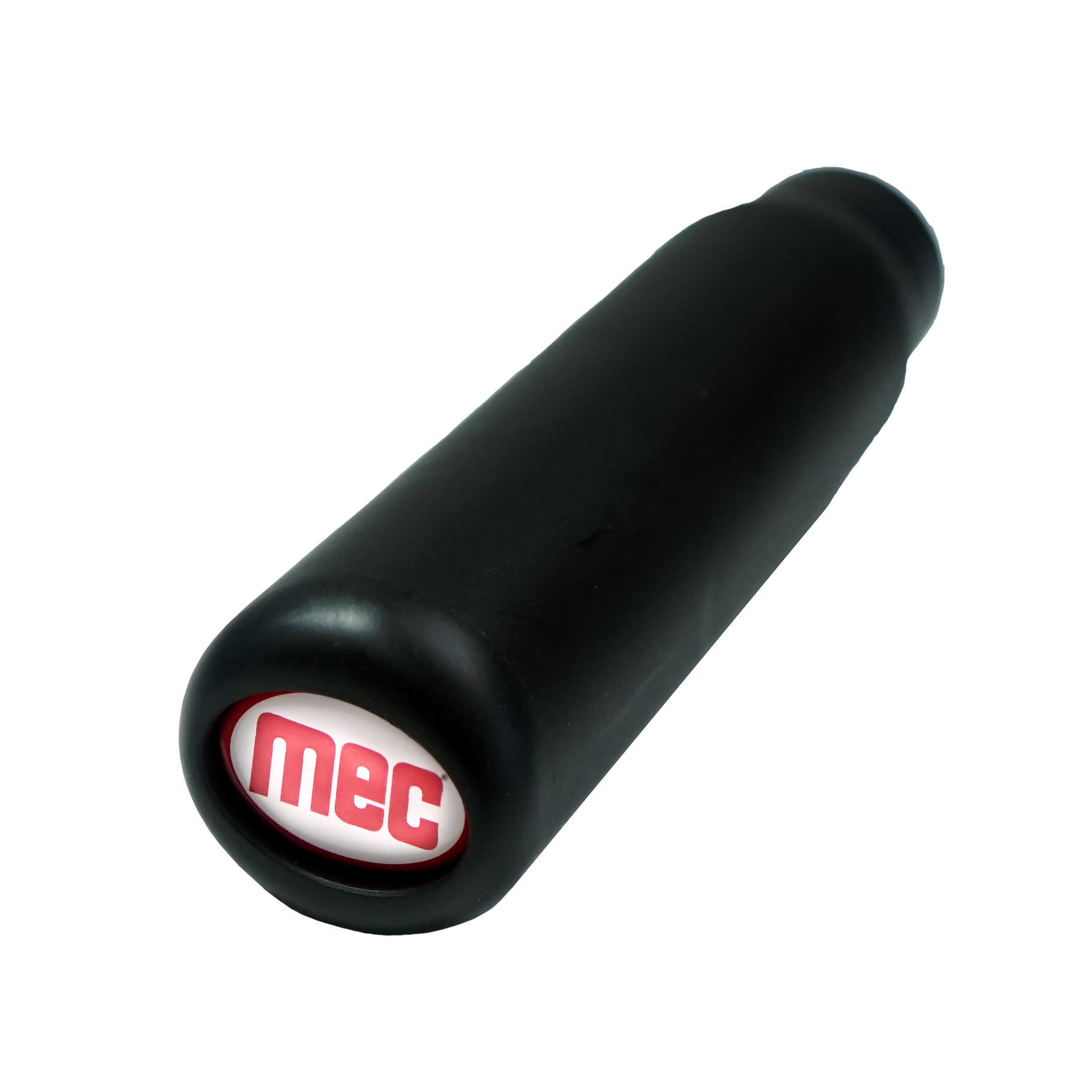

View Image 44 Handle Grip 1008400 $14.62
View Image 45 Handle 100609 $19.60
View Image 46 Crimp Die Cam 100723 $5.38
View Image 47 Stop Nut (14 / 20) HDW309E $0.44
View Image 48 Self Tapping Screw HDW8324 $2.90
View Image 49 Washer HDW623C $1.22
View Image 50 Washer HDW609F $0.65
View Image 51 Link Spacer 100510B $0.46
View Image 52 Links Kit (L & R Hand) 100610 $16.81
View Image 53 Handle Bolt HDW610C $1.11
View Image 54 Handle Bolt HDW609B $2.47
View Image 55 Pressure Indicator Face 100306F $5.58
View Image 56 Pressure Spring 100306T $5.58
View Image 57 Pointer 100306P $4.15
View Image 58 Adjusting Clamp 100507 $4.15
View Image 58A Adjusting Clamp Screw HDW507A $1.22
View Image 59 Retaining Ring 100670K $0.69
View Image 60 Trip Spring 100670D $0.93
View Image 61 Trip Rod 100670F $4.86
View Image 62 Spacer 1008344 $2.39
View Image 63 Actuator Rod 1008310 $11.82
View Image 64 Reprime Spring 1008025 $6.95
View Image 65 Trip Rod Bracket 100670E $1.95
View Image 66 Cam Crimp Die Assembly - 12 Gauge 100621CA12 $16.18
View Image 66A Cam Crimp Assembly - 16 Gauge 100721CA16 $16.18
View Image 66B Cam Crimp Die Assembly - 20 Gauge 100621CA20 $16.18
View Image 66C Cam Crimp Assembly - 28 Gauge 100721CA28 $16.18
View Image 66D Cam Crimp Assembly - 410 Bore 100721CA410 $16.18
View Image 67 Lock Nut HDW461A $0.42
View Image 68 Cam Crimp Punch - 12 Gauge 100621B12 $8.38
View Image 68A Cam Crimp Punch - 16 Gauge 100721B16 $9.50
View Image 68B Cam Crimp Punch - 20 Gauge 100621B20 $8.38
View Image 68C Cam Crimp Punch - 28 Gauge 100721B28 $9.50
View Image 68D Cam Crimp Punch - 410 Bore 100721B410 $9.50
View Image 69 Lock Nut HDW461A $0.42
View Image 70 Turret Assembly 1008035 $67.50
View Image 71 Lock Nut HDW459A $0.66
View Image 72 Finish Die - 12 Gauge 10052212P $16.18
View Image 72A Finish Die - 16 Gauge 10052216P $16.18
View Image 72B Finish Die - 20 Gauge 10052220P $16.18
View Image 72C Finish Die - 28 Gauge 10052228P $16.18
View Image 72D Finish Die - 410 Bore 100522410P $16.18
View Image 73 Deprime Punch - 12 Gauge 100810712 $19.66
View Image 73A Deprime Punch - 16 Gauge 100810716 $19.66
View Image 73B Deprime Punch - 20 Gauge 100810720 $19.66
View Image 73C Deprime Punch - 28 Gauge 100810728 $19.66
View Image 73D Deprime Punch - 410 Bore 1008107410 $19.66
View Image 74 Reprime Tube - 12 Gauge 100505C12 $17.13
View Image 74A Reprime Tube - 16 Gauge 100505C16 $17.13
View Image 74B Reprime Tube - 20 Gauge 100505C20 $17.13
View Image 74C Reprime Tube - 28 Gauge 100505C28 $17.13
View Image 74D Reprime Tube - 410 Bore 100505C410 $17.13
View Image 75 Nut HDW8476 $1.43
View Image 76 Ball Pivot Pin 1008419 $2.43
View Image 77 Spindex Star Crimp - 12 Gauge ( 6 Point) 1008439126 $5.85
View Image 77A Spindex Star Crimp - 12 Gauge ( 8 Point) 1008439128 $5.85
View Image 77B Spindex Star Crimp - 16 Gauge ( 6 Point) 1008439166 $5.85
View Image 77C Spindex Star Crimp - 16 Gauge ( 8 Point) 1008439168 $5.85
View Image 77D Spindex Star Crimp - 20 Gauge ( 6 Point) 1008439206 $5.85
View Image 77E Spindex Star Crimp - 20 Gauge ( 8 Point) 1008439208 $5.85
View Image 77F Spindex Star Crimp - 28 Gauge ( 6 Point) 100843928 $5.85
View Image 77G Spindex Star Crimp - 410 Bore ( 6 Point) 1008439410 $5.85
View Image 78 Lock Washer HDW685H $0.10
View Image 79 Rammer Tube - 12 Gauge 100505B12 $15.35
View Image 79A Rammer Tube - 16 Gauge 100505B16 $15.35
View Image 79B Rammer Tube - 20 Gauge 100505B20 $15.35
View Image 79C Rammer Tube - 28 Gauge 100505B28 $15.35
View Image 79D Rammer Tube - 410 Bore 100505BF410 $19.57
View Image 80 Charge Bar Rubber Insert 1008440 $2.54
View Image 82 Link Bolt HDW610A $1.22
View Image 83 Pivot Block Screw HDW504D $1.22
View Image 84 Column 1008010 $54.54
View Image 85 Column Spring 100612 $4.92
View Image 86 Wad Guide Fingers - 12 Gauge 100830012 $3.61
View Image 86A Wad Guide Fingers - 16 Gauge 100830016 $3.61
View Image 86B Wad Guide Fingers - 20 Gauge 100830020 $3.61
View Image 86C Wad Guide Fingers - 28 Gauge 100830028 $3.61
View Image 86D Wad Guide Fingers - 410 Bore 100453P410 $3.49
View Image 87 Wad Guide Clip Assembly 1008377 $6.04
View Image 88 Retaining Ring 100616A $0.69
View Image 89 Wad Guide Rod - 12 Gauge 100856112 $24.51
View Image 89A Wad Guide Rod - 16 Gauge 100800716 $29.36
View Image 89B Wad Guide Rod - 20 Gauge 100856120 $24.51
View Image 89C Wad Guide Rod - 28 Gauge 100856128 $24.51
View Image 89D Wad Guide Rod - 410 Bore 1008561410 $24.51
View Image 90 Lock Nut HDW461A $0.42
View Image 91 Shell Lifter Bracket 1008563 $2.40
View Image 92 Index Spring 100615C $2.76
View Image 93 Carrier Hold Down 100615B $8.38
View Image 94 Index Ball 100515D $1.23
View Image 95 Carrier - 12 Gauge 10061512 $18.45
View Image 95A Carrier - 16 Gauge 10061516 $18.45
View Image 95B Carrier - 20 Gauge 10061520 $18.45
View Image 95C Carrier - 28 Gauge 10061528 $18.45
View Image 95D Carrier - 410 Bore 100615410 $18.45
View Image 96 Carrier Bushing 1008112 $6.58
View Image 97 *See Reference Number 110 1008113 $5.58
View Image 98 Base Assembly - 12 Gauge 100855512 $65.00
View Image 98A Base Assembly - 16 Gauge 100855516 $65.00
View Image 98B Base Assembly - 20 Gauge 100855520 $65.00
View Image 98C Base Assembly - 28 Gauge 100855528 $65.00
View Image 98D Base Assembly - 410 Bore 1008555410 $65.00
View Image 99 Column Bolt HDW8024 $1.20
View Image 100 Primer Catcher 1008067 $5.12
View Image 101 Wing Nut HDW713D $1.22
View Image 102 Mounting Bolt HDW313C $0.44
View Image 103 Nut 1008017 $3.43
View Image 104 Guide Post Assembly 1008944 $14.64
View Image 105 Spring 100630 $4.15
View Image 106 12 Gauge 10053112 $6.48
View Image 106A Primer Seat Assembly (Post,Spring,Pad) 100525CA12 $19.66
View Image 107 Closure (Bottom) 1008491 $24.46
View Image 108 Shell Lifter - 12 Gauge 100856012 $16.39
View Image 108A Shell Lifter - 16 Gauge 100856016 $16.39
View Image 108B Shell LIfter - 20 Gauge 100856020 $16.39
View Image 108C Shell Lifter - 28 Gauge 100856028 $16.39
View Image 108D Shell Lifter - 410 Bore 1008560410 $16.39
View Image 109 Collet - 12 Gauge 100808012 $65.46
View Image 109A Collet - 16 Gauge 100808016 $65.46
View Image 109B Collet - 20 Gauge 100808020 $65.46
View Image 109C Collet - 28 Gauge 100808028 $65.46
View Image 109D Collet - 410 Bore 1008080410 $65.46
View Image 110 Chain Link With Keeper 1008032 $6.04
View Image 111 Chain Link With Keeper 1008032 $6.04
View Image 112 Chain Link With Keeper 1008032 $6.04
View Image 113 Return Bracket 1008608 $29.24
View Image 114 Pivot Pin 1008022 $1.95
View Image 115 Retaining Ring 1008023 $0.69
View Image 116 Cam Roller Kit 1008735 $6.07
View Image 117 Hold Down Pin 1008348 $0.27
View Image 118 Collet Closure Assembly 1008018HB $37.22
View Image 119 Wad Guide Spring 1008724 $2.17
View Image 120 Cam Roller Kit 1008735 $6.07
View Image 121 Cam Roller 100623B $2.76
View Image 122 Hydraulic Pump 100690 $1,047.14
View Image 123 Hose Assembly 100690A $73.42
View Image 124 Hydraulic Cylinder Kit 1008877 $293.84
View Image 125 Roll Pin 100691B $1.24
View Image 126 Bolt HDW110A $1.06
View Image 127 Pivot Bracket 100691A $15.35
View Image 128 Jam Nut HDW691D $1.11
View Image 129 Formed Spacer 100691E $5.95
View Image 130 Link Strap 100694 $6.32
View Image 131 Truss Rod Rh 1008057 $21.78
View Image 132 Truss Rod Lh 1008058 $12.77
View Image 133 Link Lh 1008071 $12.77
View Image 134 Link Rh 1008072 $12.77
