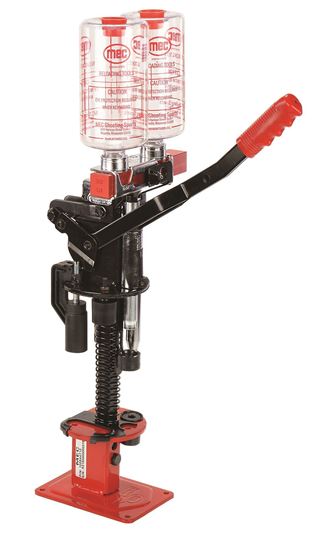

600 Jr Mark 5 Parts

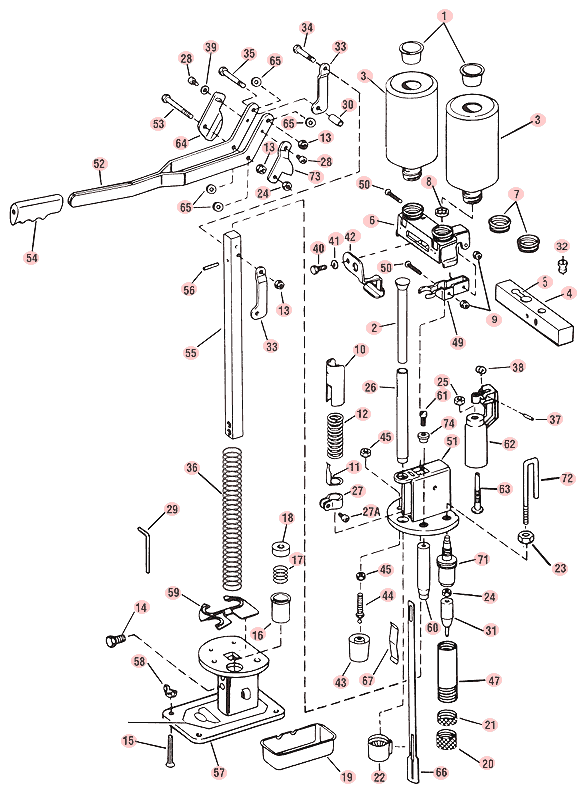

600 Jr. Mark 5 74 73 72 71 67 66 65 65 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 50 49 47 45 45 44 43 42 41 40 39 38 37 36 35 34 33 33 32 31 30 29 28 28 27A 27 26 25 24 24 23 22 21 20 19 18 17 16 15 14 13 13 13 12 11 10 9 8 7 6 5 4 3 3 2 1

warningWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

IMAGE CHART# NAME SKU MSRP Order
View Image 1 Cap Plug 10013X $0.55
View Image 2 Drop Tube (10, 12, 16 Gauge) 100205 $1.90
View Image 2A Drop Tube (20, 28, 410) 10020528 $1.90
View Image 3 Small Container With Cap 100301L13XUPC $14.79
View Image 4 Charge Bar - 1/2 Oz. Lead Shot 10030212 $30.70
View Image 4A Charge Bar - 5/8 Oz. Lead Shot 10030258 $30.70
View Image 4B Charge Bar - 11/16 Oz. Lead Shot 1003021116 $30.70
View Image 4C Charge Bar - 3/4 Oz. Lead Shot 10030234 $30.70
View Image 4D Charge Bar - 7/8 Oz. Lead Shot 10030278 $30.70
View Image 4E Charge Bar - 1 Oz. Lead Shot 100302100 $30.70

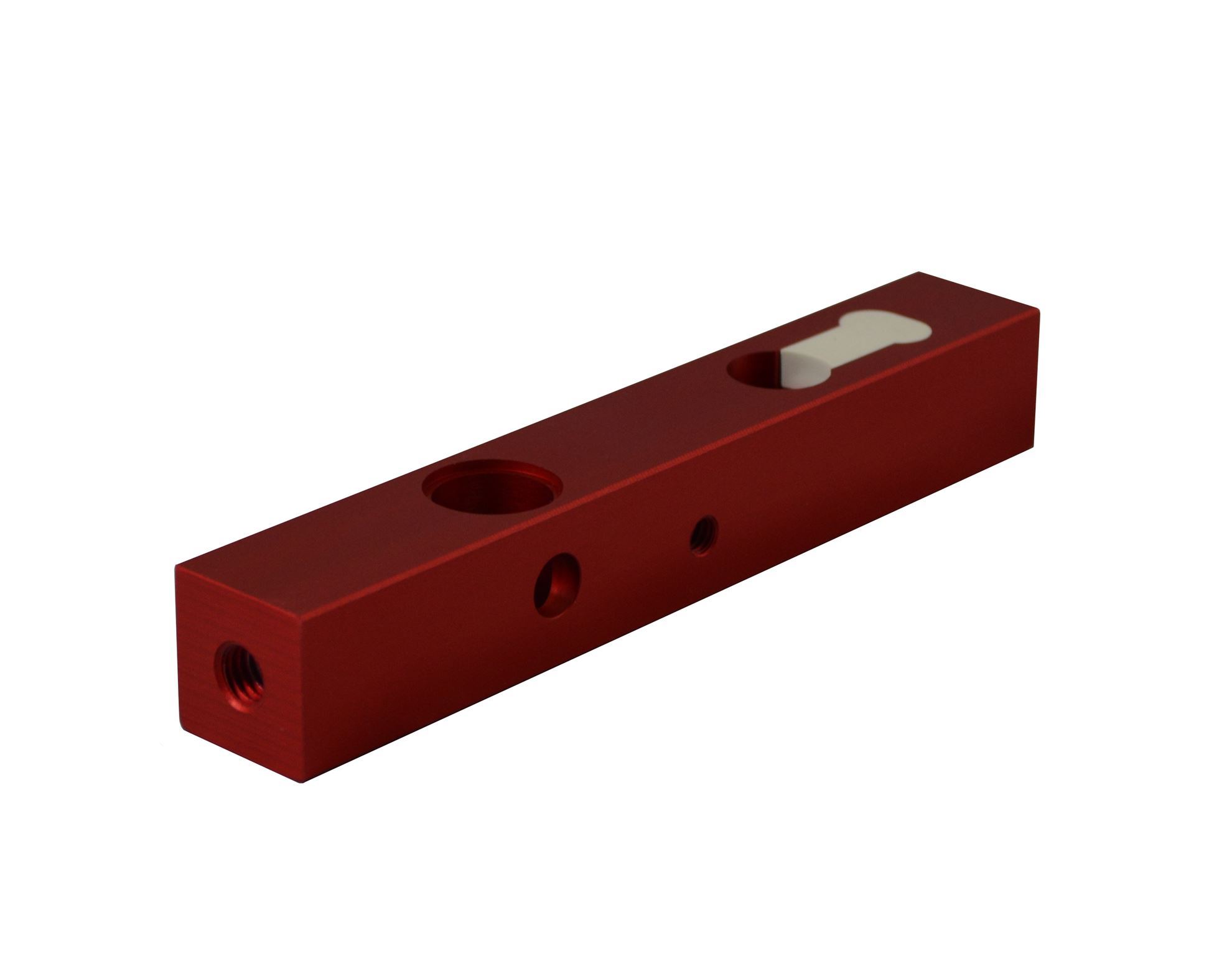

View Image 4F Charge Bar - 1 1/8 Oz. Lead Shot 100302118 $30.70
View Image 4G Charge Bar - 1 3/16 Oz. Lead Shot 1003021316 $30.70
View Image 4H Charge Bar - 1 1/4 Oz. Lead Shot 100302114 $30.70
View Image 4I Charge Bar - 1 3/8 Oz. Lead Shot 100302138 $30.70
View Image 4J Charge Bar - 1 1/2 Oz. Lead Shot 100302112 $30.70
View Image 4K Charge Bar - 1 5/8 Oz. Lead Shot 100302158 $30.70
View Image 4L Charge Bar - 1 3/4 Oz. Lead Shot 100302134 $30.70
View Image 4M Charge Bar - 1 7/8 Oz. Lead Shot 100302178 $30.70
View Image 4N Charge Bar - 2 Oz. Lead Shot 100302200 $30.70
View Image 4O Charge Bar - 2 1/4 Oz. Lead Shot 100302214 $30.70
View Image 5 Charge Bar Rubber Insert 1008440 $2.85
View Image 6 Measure Only 1008098CA $31.65

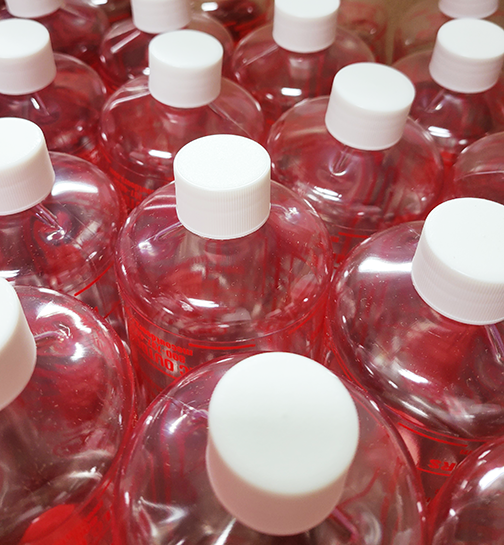

View Image 7 Bottle Cap 100304C $0.55
View Image 8 Grommet (1 Per Pack) 100304G $1.08
View Image 8A Brass Washer (1 Per Pack) 100304W $1.08
View Image 9 Nut HDW304J $0.52
View Image 10 Pressure Indicator Face 100306F $6.26
View Image 11 Pointer 100306P $4.66
View Image 12 Pressure Spring 100306T $6.26
View Image 13 Stop Nut (14 / 20) HDW309E $0.52
View Image 14 Column Bolt HDW8024 $1.41
View Image 15 Mounting Bolt HDW313C $0.52
View Image 16 Primer Cup 100326 $13.71
View Image 17 Primer Seating Spring 100330 $1.90
View Image 18 Primer Seating Pad 100331 $3.60
View Image 18A Complete Primer Seat Assembly (Spring, Pad, Cup) 100325CP $19.30
View Image 19 Primer Catcher 100351 $5.75
View Image 20 Resize Ring - 10 Gauge 10043510 $8.35
View Image 20A Resize Ring - 12 Gauge 100846512 $8.47
View Image 20B Resize Ring - 16 Gauge 100846516 $8.47
View Image 20C Resize Ring - 20 Gauge 100846520 $8.47
View Image 20D Resize Ring - 28 Gauge 100846528 $8.47
View Image 20E Resize Ring - 410 Bore 1008465410 $8.47
View Image 21 Lock Ring 100435A $8.35
View Image 22 Wad Guide Fingers - 10 Gauge 100830010 $4.06
View Image 22A Wad Guide Fingers - 12 Gauge 100830012 $4.06
View Image 22B Wad Guide Fingers - 16 Gauge 100830016 $4.06
View Image 22C Wad Guide Fingers - 20 Gauge 100830020 $4.06
View Image 22D Wad Guide Fingers - 28 Gauge 100830028 $4.06
View Image 22E Wad Guide Fingers - 410 Bore 1008300410 $4.06
View Image 23 Lock Nut HDW459A $0.78
View Image 24 Lock Nut HDW460A $0.52
View Image 25 Lock Nut HDW461A $0.50
View Image 26 Rammer Tube - 10 Gauge 100505B10 $17.24
View Image 26A Rammer Tube - 12 Gauge 100505B12 $17.24
View Image 26B Rammer Tube - 16 Gauge 100505B16 $17.24
View Image 26C Rammer Tube - 20 Gauge 100505B20 $17.24
View Image 26D Rammer Tube - 28 Gauge 100505B28 $17.24
View Image 26E Rammer Tube - 410 Bore 100505BF410 $21.99
View Image 27 Adjusting Clamp 100507 $4.66
View Image 27A Adjusting Clamp Screw HDW507A $1.44
View Image 28 Self Tapping Screw HDW8324 $3.42
View Image 29 Hex Wrench 100507B $0.78
View Image 30 Link Spacer 100510B $0.52
View Image 31 Deprime Punch - 10 Gauge 10071910 $15.82
View Image 31A Deprime Punch - 12 Gauge 10051912 $15.83
View Image 31B Deprime Punch - 16 Gauge 10051916 $15.83
View Image 31C Deprime Punch - 20 Gauge 10051920 $15.83
View Image 31D Deprime Punch - 28 Gauge 10051928 $15.83
View Image 31E Deprime Punch - 410 Bore 100519410 $15.83
View Image 33 Links Kit (L & R Hand) 100610 $18.89
View Image 34 Link Bolt HDW610A $1.44
View Image 35 Handle Bolt HDW610C $1.31
View Image 36 Column Spring 100612 $5.53
View Image 37 Cam Roller Pin 100613D $0.27
View Image 38 Cam Roller Zytel Die 1008312 $1.38
View Image 39 Washer HDW623C $1.44
View Image 40 Bolt HDW685F $1.44
View Image 41 Lock Washer HDW751W $0.80
View Image 42 Pro Check 100751E $13.21
View Image 43 Spindex Star Crimp - 10 Gauge ( 6 Point) 100843910 $6.57
View Image 43A Spindex Star Crimp - 12 Gauge ( 6 Point) 1008439126 $6.57
View Image 43B Spindex Star Crimp - 12 Gauge ( 8 Point) 1008439128 $6.57
View Image 43C Spindex Star Crimp - 16 Gauge ( 6 Point) 1008439166 $6.57
View Image 43D Spindex Star Crimp - 16 Gauge ( 8 Point) 1008439168 $6.57
View Image 43E Spindex Star Crimp - 20 Gauge ( 6 Point) 1008439206 $6.57
View Image 43F Spindex Star Crimp - 20 Gauge ( 8 Point) 1008439208 $6.57
View Image 43G Spindex Star Crimp - 28 Gauge ( 6 Point) 100843928 $6.57
View Image 43H Spindex Star Crimp - 410 Bore ( 6 Point) 1008439410 $6.57
View Image 44 Ball Pivot Pin 1008419 $2.72
View Image 45 Nut HDW8476 $1.68
View Image 47 Support Tube 1008316 $13.70
View Image 49 Measure Mounting Bracket 100704C $12.64
View Image 50 Measure Pivot Screw HDW304D $0.48
View Image 51 Turret Frame Assembly 1008319 $63.19
View Image 52 Handle Assembly 100709CA $34.50
View Image 53 Handle Bolt HDW709B $1.68
View Image 54 Handle Grip 100709C $4.66
View Image 55 Column 100711 $34.50
View Image 56 Roll Pin HDW7455 $0.21
View Image 57 Base Assembly 1008448 $47.09
View Image 58 Wing Nut HDW713D $1.44
View Image 59 Shell Holder - 10 Gauge 10071510 $16.09
View Image 59A Shell Holder - 12 Gauge 10071512 $16.09
View Image 59B Shell Holder - 16 Gauge 10071516 $16.09
View Image 59C Shell Holder - 20 Gauge 10071520 $16.09
View Image 59D Shell Holder - 28 Gauge 10071528 $16.09
View Image 59E Shell Holder - 410 Bore 100715410 $16.09
View Image 60 Reprime Punch - 10 Gauge 10072010 $18.89
View Image 60A Reprime Punch - 12 Gauge 10072012 $18.89
View Image 60B Reprime Punch - 16 GAUGE 10072016 $18.89
View Image 60C Reprime Punch - 20 Gauge 10072020 $18.89
View Image 60D Reprime Punch - 28 Gauge 10072028 $18.89
View Image 60E Reprime Punch - 410 Bore 100720410 $18.89
View Image 61 Screw HDW634K $0.50
View Image 62 Cam Crimp Assembly - 10 Gauge 100721CA10 $18.17
View Image 62A Cam Crimp Assembly - 12 Gauge 100721CA12 $18.17
View Image 62B Cam Crimp Assembly - 16 Gauge 100721CA16 $18.17
View Image 62C Cam Crimp Assembly - 20 Gauge 100721CA20 $18.17
View Image 62D Cam Crimp Assembly - 28 Gauge 100721CA28 $18.17
View Image 62E Cam Crimp Assembly - 410 Bore 100721CA410 $18.17
View Image 63 Cam Crimp Punch - 10 Gauge 100721B10 $10.67
View Image 63A Cam Crimp Punch - 12 Gauge 100721B12 $10.67
View Image 63B Cam Crimp Punch - 16 Gauge 100721B16 $10.67
View Image 63C Cam Crimp Punch - 20 Gauge 100721B20 $10.67
View Image 63D Cam Crimp Punch - 28 Gauge 100721B28 $10.67
View Image 63E Cam Crimp Punch - 410 Bore 100721B410 $10.67
View Image 64 Crimp Die Cam 100723 $6.04
View Image 65 Washer HDW609F $0.77
View Image 66 Wad Guide Bracket 1008313 $11.46
View Image 67 Wad Guide Spring 100751D $1.41
View Image 71 Knockout Bushing - 10 Gauge 100832010 $10.98
View Image 71A Knockout Bushing - 12 Gauge 100832012 $10.98
View Image 71B Knockout Bushing - 16 Gauge 100832016 $10.98
View Image 71C Knockout Bushing - 20 Gauge 100832020 $10.98
View Image 71D Knockout Bushing - 28 Gauge 100832028 $10.98
View Image 71E Knockout Bushing - 410 Bore 1008320410 $10.98
View Image 72 Eject Bolt 100760 $5.25
View Image 73 Eject Cam 100764 $5.46
View Image 74 Spacer 100703 $5.20
